Multi Unit Abutment
All On K Angled

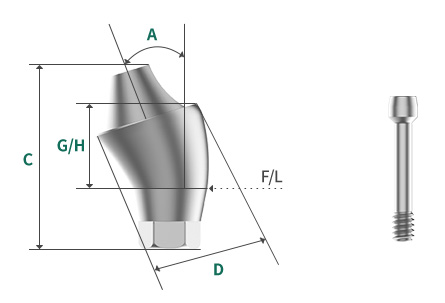

Multi Unit Abutment – Angled Mini
- - Manufacturing Approval 22-4210
- - Recommended tightening torque 20N·cm(M)
- - 1.2 HEX
| D ø 4.8 1.2Hex |
17 ° Mini | |||
|---|---|---|---|---|
| G/H(mm) | 2.5 | 3.0 | 4.0 | |
| C(mm) | 6.5 | 7.0 | 8.0 | |
 |
 |
 |
||
| ACMUAM654817 | ACMUAM704817 | ACMUAM804817 | ||
| 30 ° Mini | ||||
| G/H(mm) | 3.5 | 4.0 | 5.0 | |
| C(mm) | 7.5 | 8.0 | 8.5 | |
 |
 |
 |
||
| ACMUAM754830 | ACMUAM804830 | ACMUAM854830 | ||
All On K Angled

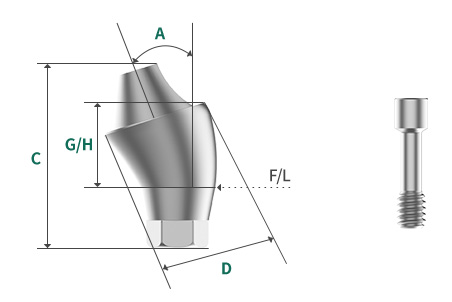

Multi Unit Abutment – Angled Regular
- - Manufacturing Approval 22-4210
- - Recommended tightening torque 30N·cm(R)
- - 1.2 HEX
| D ø 4.8 1.2Hex |
17 ° REGUALR | |||
|---|---|---|---|---|
| G/H(mm) | 2.5 | 3.0 | 4.0 | |
| C(mm) | 6.5 | 7.0 | 8.0 | |
 |
 |
 |
||
| ACMUAR654817 | ACMUAR704817 | ACMUAR804817 | ||
| 30 ° REGUALR | ||||
| G/H(mm) | 3.5 | 4.0 | 5.0 | |
| C(mm) | 7.5 | 8.0 | 8.5 | |
 |
 |
 |
||
| ACMUAR754830 | ACMUAR804830 | ACMUAR854830 | ||
